Creating Phases and Objects

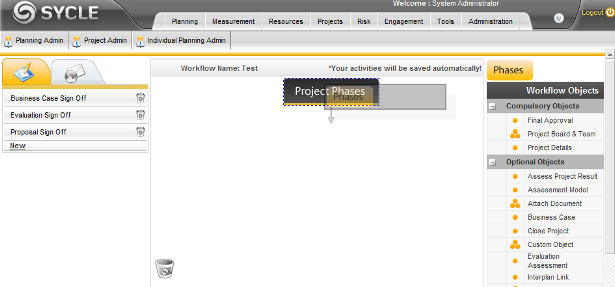

The far left side of the Workflow page shows your sign off templates and email templates. The list on the right shows all available workflow objects. You have two types of objects, compulsory objects and optional objects.

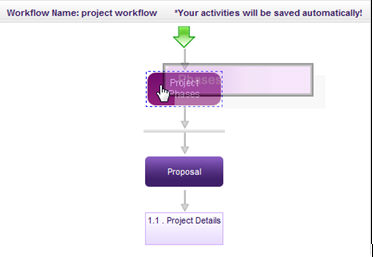

STEP 1: To create a new Phase, simply drag the 'Phases' box and drop onto the 'Project Phases' box in the middle of the screen and wait for the blue dotted line to appear around 'Project Phases' box. When it does, simply release the 'Phases' box to create a new Phase.

Note that you cannot add an object without creating a project phase first. A warning message will appear if you attempt to add an object without a phase.

You cannot delete the initial phase and the project details objects. Warning message appears when trying to delete the initial phase.

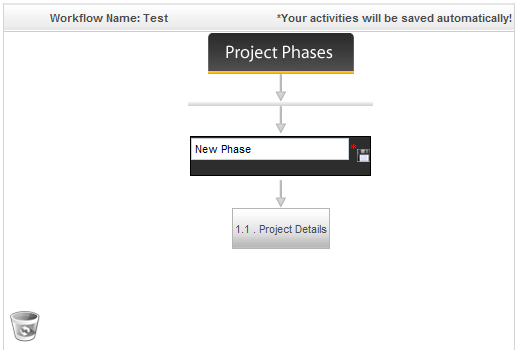

STEP 2: Enter a title for the phase according to your organisation's requirements and click 'Save'.

Once the first phase has been added, it will automatically add the 'Project Details' object as the first object of the workflow.

You cannot delete the initial phase and the project details object. A warning message will appear if you try to delete these items.

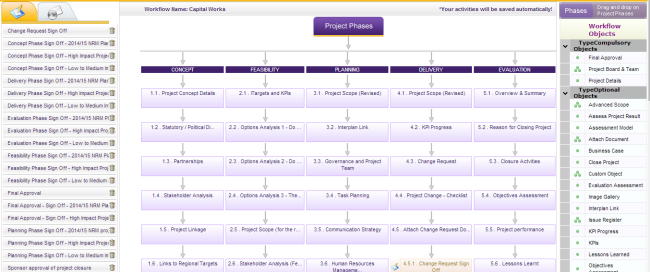

Similarly, you can include multiple phases and objects by dragging and dropping them into the relevant locations. Ordering the phases and objects will depend on your organisational preference.

You can change the position of an object at any time by dragging and dropping the object to the required location in the workflow.

Objects under a particular phase get numbered automatically according to the sequence in which they are placed within the phase.

Business Rules

Before adding KPI Progress object you should include KPI object and you cannot remove the KPI Progress object before deleting KPI object.
'interplan Link' object should be added before adding 'Task Planning' object. This would enable you to link tasks created in 'task planning' object to actions/tasks in the planning areainterplan.
However, before 'interplan Link' object 'Project Linkage' object should be added.

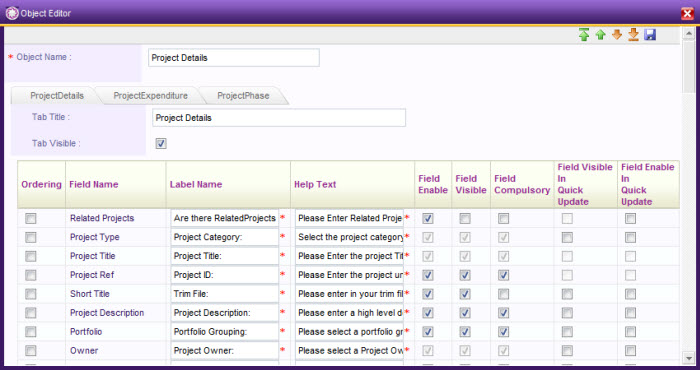

STEP 3: To modify a phase title, click on the particular phase and enter a new title. You have the option of altering the terminology and visibility settings of fields within each Object screen as shown below. Remember, the changes that you make will be reflected within the phases and can be seen by all users.

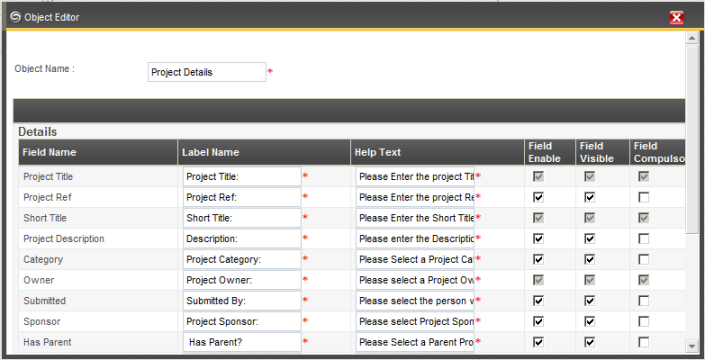

STEP 4: To do this, click on the object. A pop-up window will appear to let you edit the terminology.

You can alter the terminology and visibility by customising the following.

Field	Descriptions/Instructions	Mandatory/Optional
Object Name	Shows the default object name which can be edited as required	Mandatory
Field Name	The default field name	Mandatory
Label Name	Shows the default field name which can be edited as required	Mandatory
Help Text	Help text displayed when hovering over help icon for this field Shows the default text which can be edited as required	Mandatory
Field Enable	If ticked, the selected field will be active but invisible to the user unless 'Field Visible' is also ticked.	Not Applicable
Field Visible	If ticked, the selected filed will be visible (read only) within the screen. However, if 'Field Enable' is also ticked then you can enter/update data.	Not Applicable
Field Compulsory	If ticked, the selected field will be a mandatory field within the screen.	Not Applicable

Note that a few key fields have tickboxes greyed out; this is because their behaviour and visibility settings are fixed as system defaults and cannot be modified. Similarly, you can configure other object's terminology and visibility. However, note that each object is meant for a particular function and thus, contain different sub sections and fields.

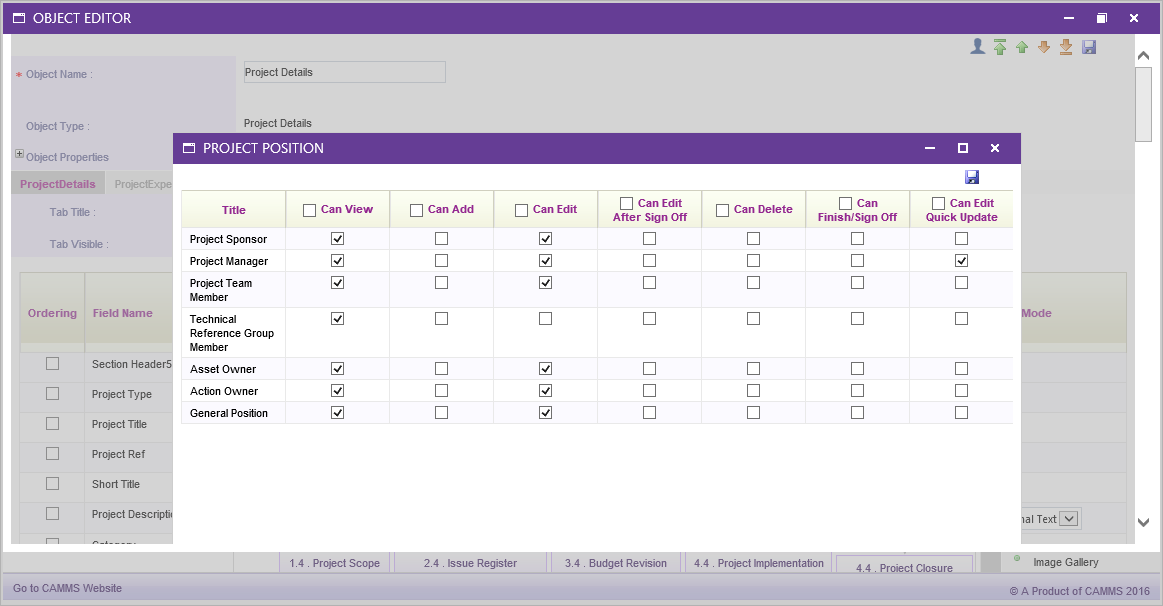

Administrator has the option to configure permission for an object for a particular workflow.

Clicking on the Set permission icon administrator can enable permission for an object for relevant positions if they

· Can view

· Can add

· Can edit

· Can delete

· or Can finish/Sign off (when an object sign off is placed, only staff with this permission can give approval)

STEP 5: To remove an object from the workflow, simply drag it to the recycle bin.

You can delete a workflow using the trash can icon to delete it. Note that if a workflow has been applied to any existing projects the system will not allow you to delete any objects within it.

Using Sign off and Generic Email objects in a phases

STEP 1: Place business case objects and define the phases for the workflow as necessary.

STEP 2: Drag & drop desired Sign off / Generic objects to required positions.

STEP 3: Click on the object to modify the name.

STEP 4: Click 'Save'.

See 'Assigning Sign Off Templates; for more information on this.

Last revised: September 23, 2018
